Google Cloud node

A Google Cloud node lets you interact with Google Cloud services directly from your flow. Use it to retrieve data, create or modify resources, and perform actions across Google Cloud services. The output of one node becomes the input for the next, allowing you to define a sequence of actions and operations.

Find an action​

When adding a Google Cloud node to a flow, select Google Cloud as the provider and then find an action by searching or browsing within Google Cloud services. In addition, a template node allows you to add a pre-built group of actions to the current flow.

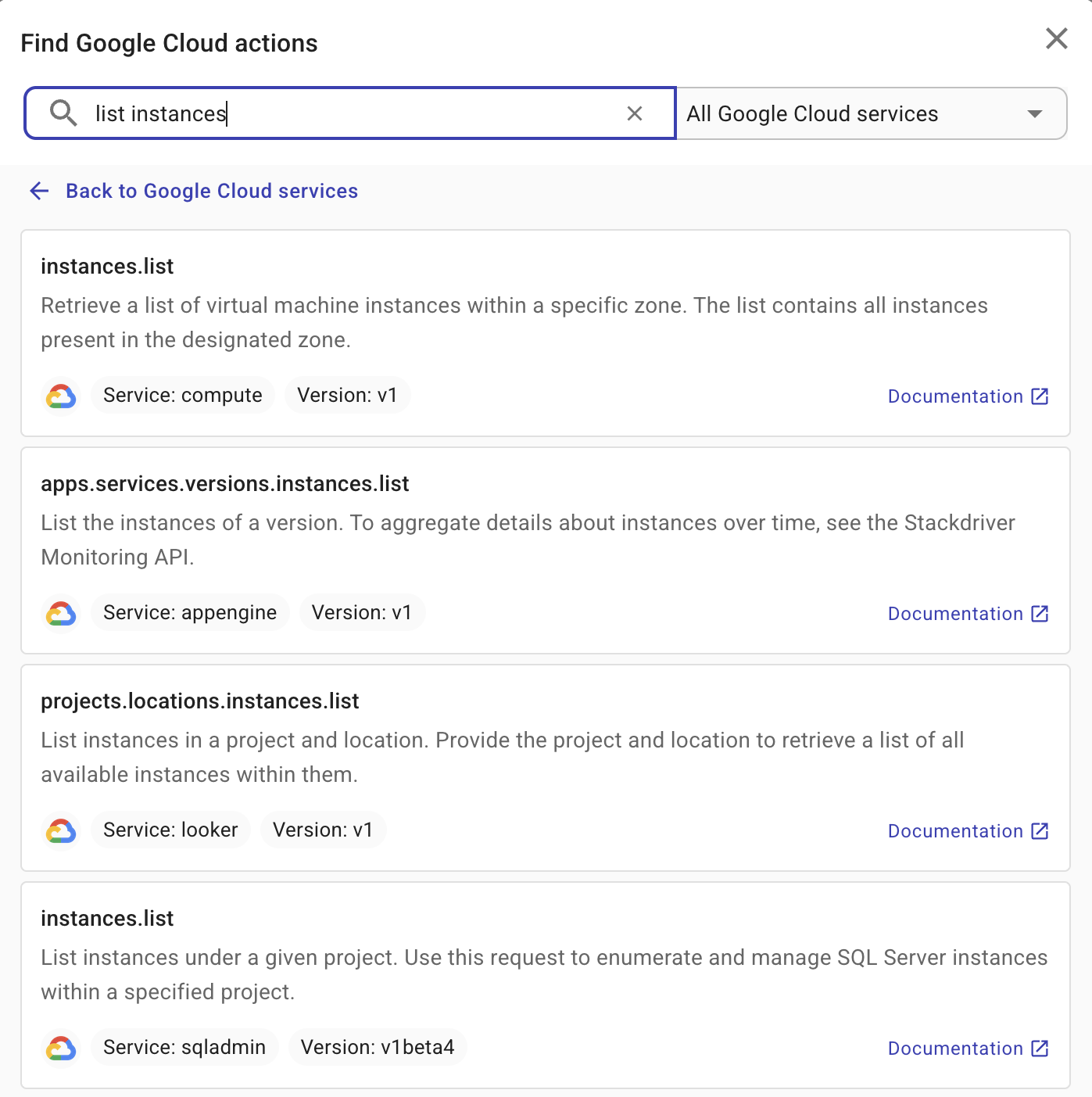

Search for a Google Cloud action

Configure an action​

Selecting an action node will open a side panel with three tabs for configuration:

Google Cloud action configuration

  • Parameters: This tab shows the service and action you've chosen and the option to change. You also configure approval settings on this tab. The parameters available vary with service and action.

  • Permissions: This tab helps you verify whether you have the required permissions to perform the action and provides instructions if you don't. See also APIs in CloudFlow.

Require approval​

If an action should be approved before its execution, select Require approval for this action on the Permissions tab.

Require approval for a Google Cloud action

  • Notification provider: Specifies whether to notify the approver via Slack or email. For the former, you should have created a shared Slack channel with DoiT.

  • Message (optional): A message for the approver. You can add fields from previous nodes to your message. When the message is created, the data from the field is displayed in the message. This is useful because it provides recipients with the details they need to make a decision without having to navigate to the system and manually search for the relevant information. An array of fields are displayed as a comma-separated list. For example, Instance ID: i-123,i-466.

  • Reject approval after certain time (optional): Limits for how long the action will wait for an approval. Possible time units are Hours, Days, Weeks, and Months. For example, you can set that an approver must approve/reject the action within 24 hours. If the approver takes no action before the specified time period expires, the action is automatically rejected.

Add a waiter​

A waiter ensures that a Google Cloud action in your flow is complete before the flow proceeds to the next step. Many Google Cloud operations are asynchronous: the API call returns before the resource reaches its final state. You can use a Waiter to define a JMESPath condition on an action result. The action is executed until the condition is met (or until max retries). You can wait for a VM to be running, a bucket to exist, or any state expressible as a JMESPath expression.

If an action requires a waiter, select Enable waiter then configure the JMESPath condition and retry settings.

Google Cloud action Parameters tab with Enable waiter and JMESPath condition / retry fields

  • JMESPath condition: Define a condition using JMESPath syntax. The expression is evaluated against the action result and must return a boolean. If the condition is not yet met, the action is called again after a delay; this repeats until the condition is met or max retries is reached. For example, status == 'RUNNING' waits until a resource reports that status.

  • Max retries (1–30): Maximum number of times the action is re-executed before failing. The default is 5.

  • Min delay (ms) / Max delay (ms): Delay between attempts uses exponential backoff between these bounds. Min delay default is 1000 ms; max delay default is 10000 ms.

Waiter example​

A typical pattern is to create or change a resource with a Google Cloud action, wait until it reaches a desired state, then continue with another action or notification.

  1. Trigger: For example, a schedule or manual trigger.
  2. Google Cloud node: Run an action that creates or modifies a resource (for example, Compute Engine insert instance, Cloud Storage create bucket). Enable the waiter and set a JMESPath condition that becomes true when the resource is ready (for example, status == 'DONE' or status == 'Complete').
  3. Next nodes: Use the output in a Notification node, another Google Cloud action, or a Branch node to make decisions based on the result.

Without a waiter, the next node might run while the resource is still pending and fail or behave incorrectly. With the waiter, the flow continues only after the condition is met.

Tip

For long-running operations that return a done field, a condition like done == true waits until the operation completes.

Test​

Select Test to test the node.
