Code node

A Code node lets you write custom JavaScript or Python code to perform complex data transformations, calculations, or logic that goes beyond what other nodes offer. Your code runs in a secure sandboxed environment, and the output becomes available to subsequent nodes in your flow.

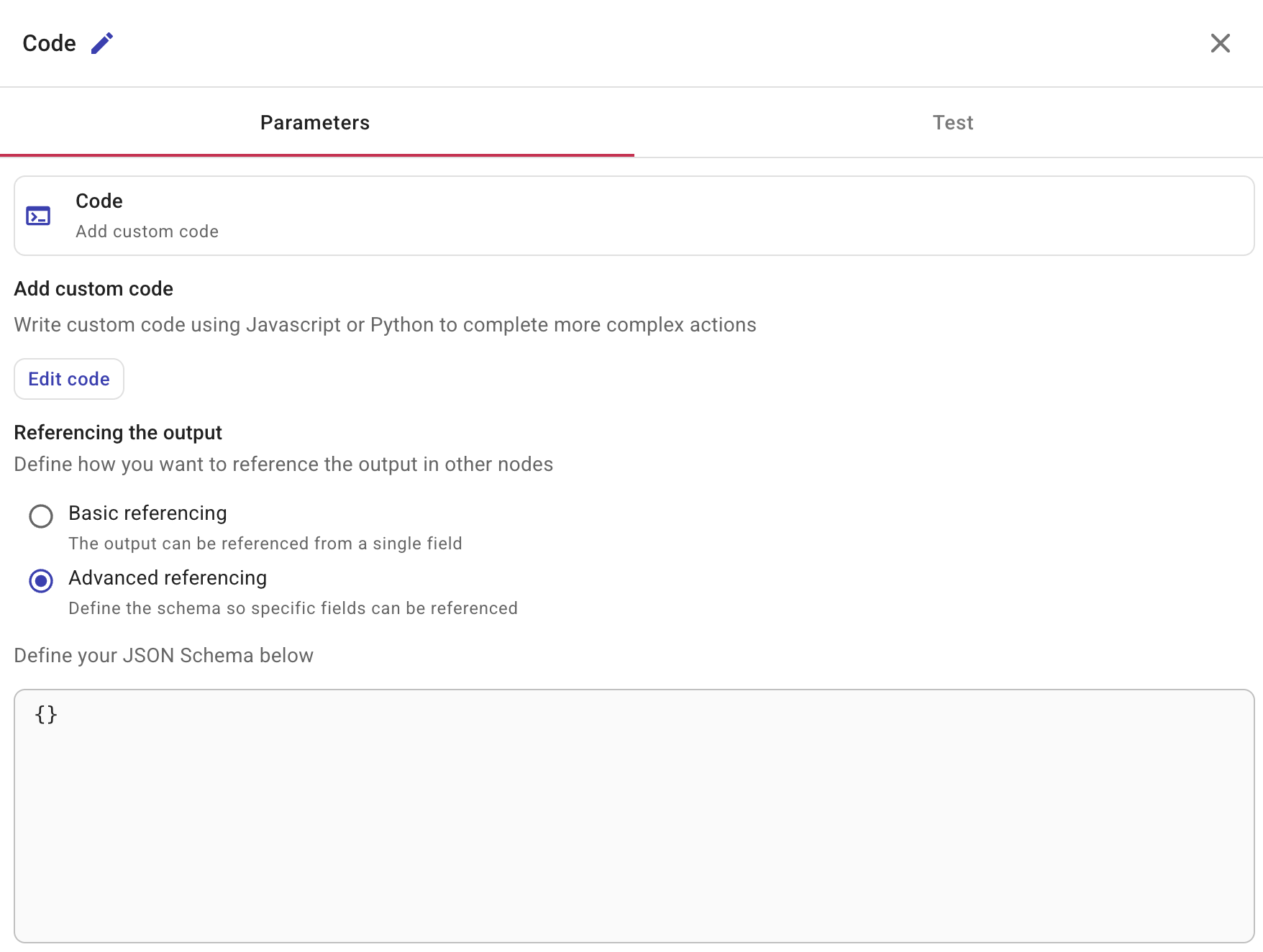

Configure the Code node

Selecting a Code node opens a side panel with two tabs: Parameters and Test.

Add custom code

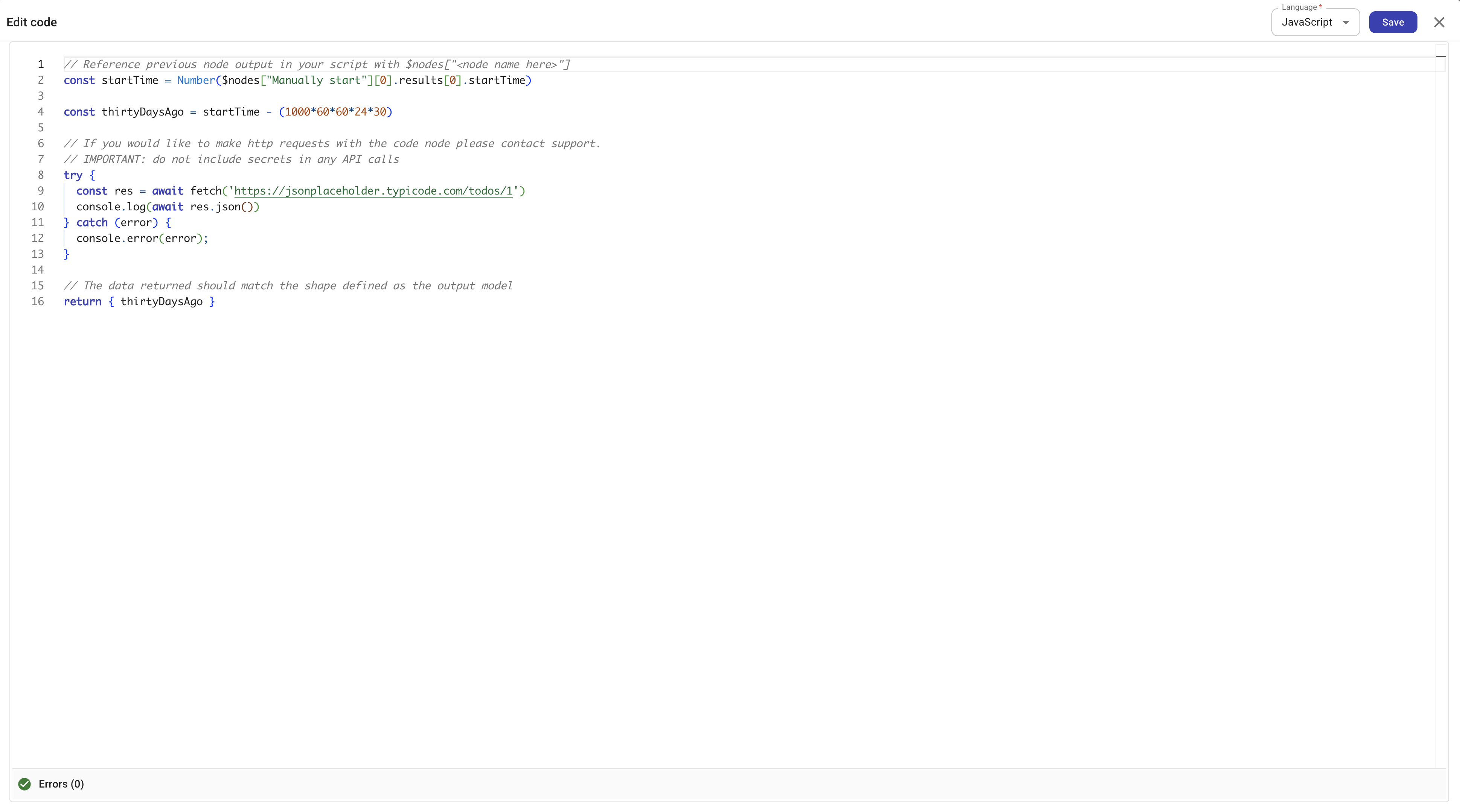

Select Edit code to open the code editor. Use the Language dropdown in the top-right corner to switch between JavaScript and Python.

Accessing data from previous nodes

Your code can access data from all preceding nodes in the flow. The runtime automatically loads results from ancestor nodes into a variable:

• JavaScript: Use $nodes — an object keyed by node name, where each entry contains the node's results.
• Python: Use nodes — a dictionary keyed by node name, where each entry contains the node's results.

For example, to read a value from a preceding node named "Manually start":

JavaScript

const startTime = Number($nodes["Manually start"][0].results[0].startTime)

Python

start_time = int(nodes["Manually start"][0]["results"][0]["startTime"])

Accessing flow variables

Your code can access the flow's global and local variables at runtime. The runtime exposes a variables object that contains two properties — globalVariables and localVariables — each keyed by variable name.

• JavaScript: Use $variables.
• Python: Use variables.

JavaScript

// Access a global variable
const region = $variables.globalVariables.projectRegion

// Access a local variable
const retries = $variables.localVariables.retryCount

Python

# Access a global variable
region = variables["globalVariables"]["projectRegion"]

# Access a local variable
retries = variables["localVariables"]["retryCount"]

Tip

The code editor provides autocomplete for $variables (JavaScript) and variables (Python). After typing $variables., the editor suggests globalVariables and localVariables, then suggests individual variable names within each scope.

Note

Connection variables are not available through $variables. To use a connection in a Code node, pass the relevant values through a preceding node or a non-connection variable.

Returning data

Your code must return a value that can be serialized to JSON. The returned data becomes the output of the Code node and can be referenced by subsequent nodes (for example, via the + button in later nodes). See Node parameters.

JavaScript

return { thirtyDaysAgo }

Python

return {"thirty_days_ago": thirty_days_ago}

Referencing the output

Define how other nodes in your flow can reference the Code node's output:

• Basic referencing: The output is referenced as a single field. Use this for simple return values.

• Advanced referencing: Define a JSON schema so that specific fields in your output can be individually referenced by downstream nodes. See Output schema for how to define the schema. Unlike typical standalone JSON Schema examples on json-schema.org, the CloudFlow output schema is not a full JSON Schema document. Do not include $schema (for example the draft/2020-12 URL) or $id in that field. They are not supported and can prevent the schema from behaving as expected.

Included libraries

The Code node sandbox comes with pre-installed libraries for common tasks. You do not need to install them — they are available by default.

JavaScript (Node.js 22)

Library	Version	Description
axios	1.13	Promise-based HTTP client
zod	4.3	Schema validation
lodash	4.17	Utility functions
jmespath	0.14	JSON query language
dayjs	1.11	Date manipulation

Python (3.12)

Library	Version	Description
requests	2.32	HTTP library
pydantic	2.12	Data validation
PyYAML	6.0.1	YAML parser
toolz	1.1	Functional utilities
pandas	2.3.3	Data analysis

Execution limits

Code runs in a sandboxed environment with the following limits:

• Maximum execution time: 60 seconds.

• Network access: Disabled by default. Contact support if your use case requires making HTTP requests from the Code node.

Test

Select Test to test the node.

See also

• Output schema — define a JSON schema so downstream nodes can reference specific fields
• Nodes
• Variables — global and local flow variables
