Attribute Azure Deployment

Install with Attribute Terraform

To ensure a smooth implementation, Attribute provides a Terraform module that automates setup for billing-information extraction and sensor registration. Detailed Terraform documentation and examples can be found in the README within the Terraform module.

Resources Created by This Module

When you run the module, the following resources are created:

Resource group named Attribute.
Storage account to hold the billing data.
Managed Identity named Attribute to allow us to fetch data.
Data Export resource to facilitate data retrieval.

Important Clarifications

Supported Terraform version is 1.9 and above.
The module can be installed at either the Azure tenant level or Azure subscription level and will create all the required infrastructure for the Attribute solution.
To run the module, the user needs a specific set of permissions — [see the full list of required permissions reproduced in step 2 of the installation instructions below).
The module does not deploy the Attribute sensor on the compute infrastructure. That process is done with different tools per compute cluster (see Attribute's installation guide).

Appendix A: Detailed Installation Instructions

This appendix walks you through the entire setup process at the subscription level.

Step 1 — Billing Integration

Verify your Terraform version is 1.9 or above:
```
terraform version
```

Make sure you have permission to run the module. The most up-to-date list can be found in the module README. Required permissions:

Microsoft.Resources/subscriptions/resourceGroups/read
Microsoft.Resources/subscriptions/resourceGroups/write
Microsoft.Resources/subscriptions/read
Microsoft.Storage/storageAccounts/read
Microsoft.Storage/storageAccounts/write
Microsoft.Storage/storageAccounts/listkeys/action
Microsoft.Storage/storageAccounts/blobServices/containers/read
Microsoft.Storage/storageAccounts/blobServices/containers/write
Microsoft.Storage/storageAccounts/blobServices/read
Microsoft.Storage/storageAccounts/fileServices/read
Microsoft.ManagedIdentity/userAssignedIdentities/read
Microsoft.ManagedIdentity/userAssignedIdentities/write
Microsoft.ManagedIdentity/userAssignedIdentities/federatedIdentityCredentials/read
Microsoft.ManagedIdentity/userAssignedIdentities/federatedIdentityCredentials/write
Microsoft.Authorization/roleAssignments/read
Microsoft.Authorization/roleAssignments/write
Microsoft.CostManagement/exports/read
Microsoft.CostManagement/exports/write

Update the main.tf file.

By default, the Billing Export is created at the subscription scope. If you'd like to create the export at the billing account scope instead, see Option 2 below.

Option 1 — Running on the subscription level:

Update the Terraform profile you're using so it points to the correct Azure subscription.
Update subscription_id to point to your subscription.
Do not change the organization_id and token values — leave them as is.

terraform {
  required_providers {
    azurerm = {
      source  = "hashicorp/azurerm"
      version = "~> 4.0"
    }
    azapi = {
      source  = "azure/azapi"
      version = ">= 2.0.0, < 3.0"
    }
  }
}

provider "azurerm" {
  features        {}
  subscription_id = "subscription-id"
}

module "attribute-sensor" {
  source  = "ZouzIO/attribute-sensor/azurerm"
  version = "~> 2.0"

  organization_id = "XXXXXXXXXXXXXXXXXXX"
  token           = "XXXXXXXXXXXXXXXXX"
}

Option 2 — Create Billing Export at the billing account level:

Update the attribute-sensor module in main.tf to include the billing account ID:

module "attribute-sensor" {
  source  = "ZouzIO/attribute-sensor/azurerm"
  version = "2.0.1"

  organization_id    = var.organization_id
  token              = var.token
  billing_account_id = "<YOUR_BILLING_ACCOUNT_ID>"
}

For each additional subscription, update the module to include the following values (disabling the costs export for non-primary subscriptions):

module "attribute-sensor" {
  source  = "ZouzIO/attribute-sensor/azurerm"
  version = "2.0.1"

  organization_id     = var.organization_id
  token               = var.token
  create_costs_export = false
}

Apply the Terraform:
```
terraform init
terraform apply
```
Verification. Confirm the following resources were created:

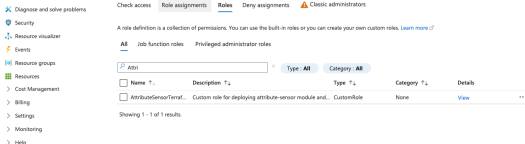

1. An Attribute role.
2. A storage account.
3. The AttributeExport Cost Management export.

Step 2 — Sensor Implementation

Next, run the sensor installation on each AKS cluster using a Helm chart.

Save the values file provided by Attribute (operator-values.yaml). This file contains a unique ephemeral token.
Verify your Helm version — version 3.8.0 or above is supported:
```
helm version
```
Update the cluster_name value in operator-values.yaml to match the target cluster:
```
cluster_name: <subscription_id>/<resource_group>/<cluster_name>
```
Note
subscription_id and resource_group are for the specific cluster. If you're using different resource groups for the cluster nodes, use the cluster resource group, not the node resource group.

Install the Helm chart:

helm upgrade -i attribute \
  oci://quay.io/attribute/operator-chart \
  -f <values.yaml> \
  -n attribute \
  --create-namespace

Verification. Run the following to verify the Helm release and that the operator and sensor are running:
```
helm list -n attribute
kubectl get pods -n attribute
```
Example expected output:

Note

If you'd like to deploy the sensor on other compute resource types (such as standalone), refer to the relevant sensor deployment documentation.

Trademarks: Microsoft and Microsoft Azure are trademarks of the Microsoft group of companies. Terraform is a registered trademark of HashiCorp, Inc. Kubernetes is a registered trademark of The Linux Foundation. All other trademarks are the property of their respective owners.
