Label customizations — SaaS

PerfectScale can recognize some labels automatically. However, it can be set up manually for advanced label configuration. This is particularly helpful when you are using custom labels to organize your K8s resources.

You can customize your labels for the workloads as well as for nodes. Currently, there are available the following options:

Label	Description
workload_labels	Defines labels that can be applied to Kubernetes resources (pods, deployments, or stateful sets) to identify and manage workloads within a cluster.
spot_labels	Identifies spot nodes.
node_group_labels	Identifies the nodes group in a cluster.
architecture_labels	Specifies the architecture of the node (x86_64, arm64, etc.)
os_labels	Specifies the operating system running on a node within the Kubernetes cluster.
instance_type_labels	Specifies the type or configuration of VMs (instances) within a cloud infrastructure.
region_labels	Specifies the geographical region where a particular resource is located.
availability_zone_labels	Specify the availability zone where a particular resource is located.
ignored_pod_labels	Defines labels that Kubernetes components should disregard when making pod decisions.
ignored_node_labels	Defines labels that Kubernetes components should disregard when making node decisions.

Label Formatting

Kube-state-metrics exposes labels following Prometheus conventions:

1. Add the label_ prefix to the label
2. Replace non-alphabetic characters with underscores
3. Convert camel case to snake case by using underscores to separate words

Info

Example

kubernetes.azure.com/scalesetpriority: spot -> label_kubernetes_azure_com_scalesetpriority: spot

node:
  spot_labels:
    label_kubernetes_azure_com_scalesetpriority: spot

Configuring Custom Labels with the profile

:tools: How to create Customization Profile

There are two options for creating a Profile: from the Settings tab or directly from the Overview.

From the Settings tab

Go to the Settings tab on the left panel -> select Customizations -> click the +Add Profile button -> name and configure the profile -> click Save button.

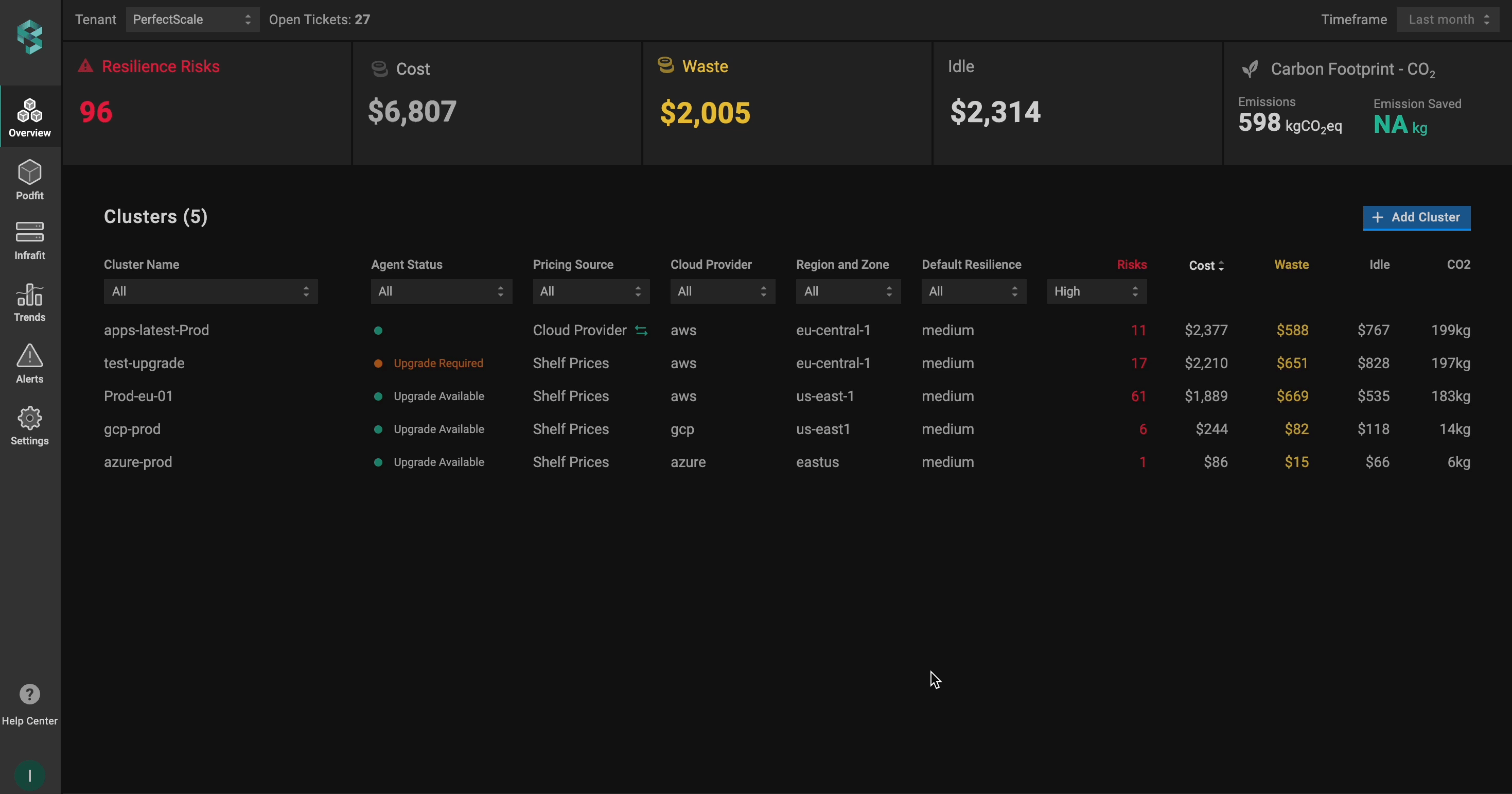

Customization profile from settings

From the Overview tab

Go to the Overview tab on the left panel -> find the cluster to which you want to apply the Customization Profile and click gear button -> go to Customizations -> click on Add New Profile in the Customization Profile drop-down list -> name and configure your profile -> click the Save And Apply button -> click the Save Changes button.

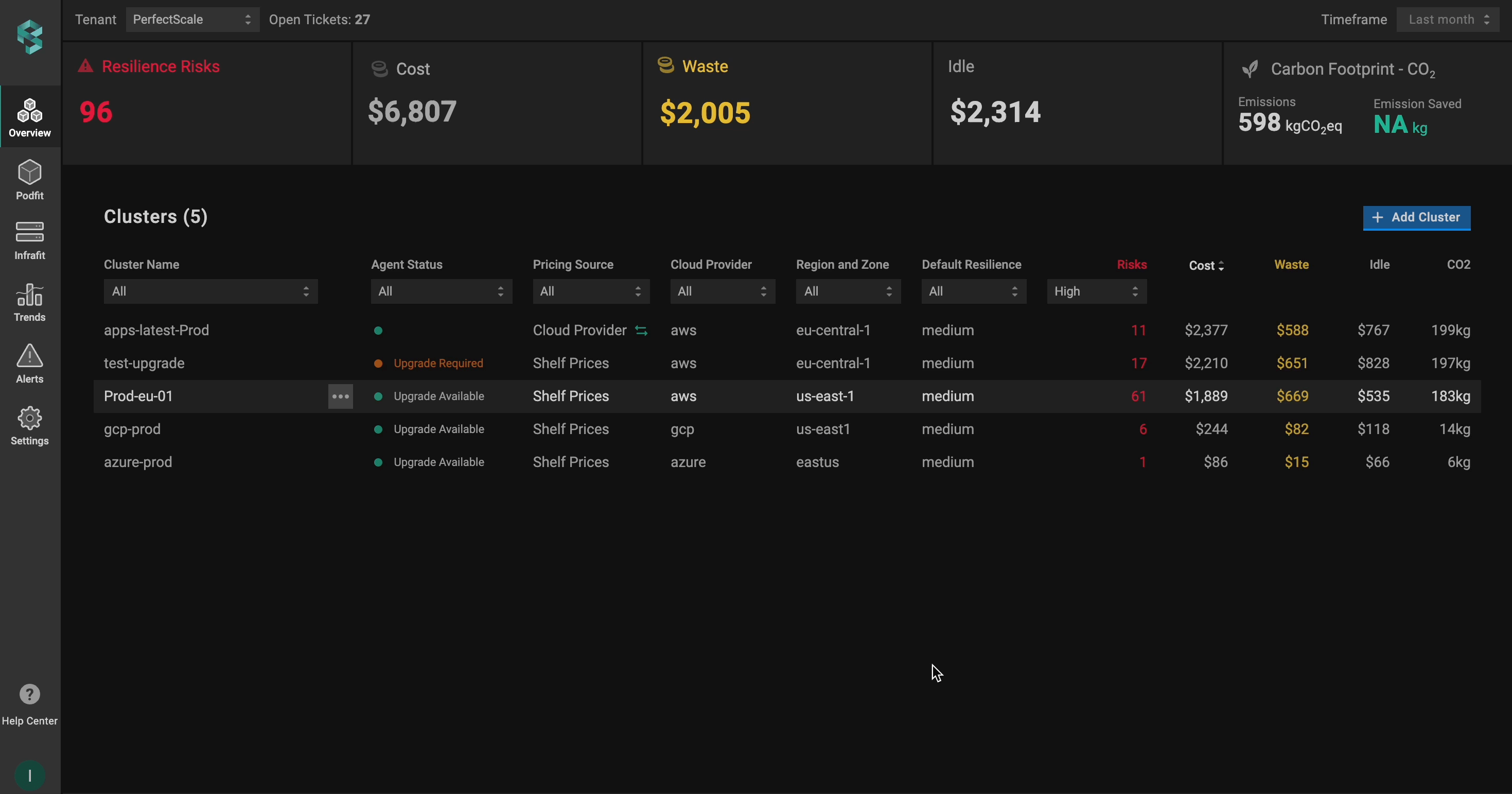

Customization profile from overview

Info

Use Set as default checkbox to automatically assign the profile to the clusters.

💡 NOTE: The manually assigned profile takes priority over the default one.

:tools: How to apply Customization Profile

Apply to a single cluster

To apply Customization Profile to the cluster, go to the Overview tab on the left panel -> find the cluster to which you want to apply the Customization Profile and click gear button -> go to Customizations -> select the needed profile in the Customization Profile drop-down list.

Applying customization profile to a single cluster

Apply to multiple clusters

To apply the profile to multiple clusters from a single view, use the Manage Assignments feature.

Go to the Settings tab on the left panel -> select the Customizations -> click the Manage Assignments button -> apply the profiles for the needed clusters -> click the Save Changes button.

Applying customization profile to multiple clusters

Configuring Custom Labels with CR

To enable custom labels and node identification, you need to define and apply a Custom Resource (CR) with the required parameters. This approach allows you to manage Custom Labels directly through Kubernetes manifests.

Caution

The Custom Resource (CR) must be created in the perfectscale namespace.

Setup instructions

1. Identify the labels used in your Kubernetes cluster to distinguish workloads.
2. Identify the labels used for node properties such as spot instances, node groups, architecture, etc.
3. Configure the fields below to match your cluster’s label structure.
4. Configure the CR.

Info

Ensure labels follow Prometheus conventions. Learn more about the format here.

apiVersion: perfectscale.io/v1
kind: ClusterSettings
metadata:
  name: cluster-settings-main
  namespace: perfectscale
spec:
  profiles:
    customization:
      - name: custom-workload-labels
        assigned: true
        value:
          workload_labels:
            - io.codefresh.pipelineName
            - app.kubernetes.io/name
            - app.kubernetes.io/component
            - app.kubernetes.io/version
            - app.kubernetes.io/part-of
          node:
            spot_labels:
              label_cloud_google_com_gke_nodepool: pool-2
              label_spotinst_io_node_lifecycle: spot
            node_group_labels:
              - eks.amazonaws.com/nodegroup
              - kops.k8s.io/instancegroup
            architecture_labels:
              - kubernetes.io/arch
              - beta.kubernetes.io/arch
            os_labels:
              - kubernetes.io/os
              - beta.kubernetes.io/os
            instance_type_labels:
              - node.kubernetes.io/instance-type
              - beta.kubernetes.io/instance-type
            region_labels:
              - topology.kubernetes.io/region
              - failure-domain.beta.kubernetes.io/region
            availability_zone_labels:
              - topology.kubernetes.io/zone
              - failure-domain.beta.kubernetes.io/zone
          ignored_pod_labels:
            - uid
            - namespace
            - pod
          ignored_node_labels:
            - uid

⚙️ CR parameters:

Parameter	Description
workload_labels	Defines labels that can be applied to Kubernetes resources (pods, deployments, or stateful sets) to identify and manage workloads within a cluster.
spot_labels	Identifies spot nodes (key-value pairs).
node_group_labels	Identifies the node groups in a cluster.
architecture_labels	Specifies the architecture of the node (x86_64, arm64, etc.).
os_labels	Specifies the operating system running on a node within the Kubernetes cluster.
instance_type_labels	Specifies the type or configuration of VMs (instances) within a cloud infrastructure
region_labels	Specifies the geographical region where a particular resource is located.
availability_zone_labels	Specifies the availability zone where a particular resource is located.
ignored_pod_labels	Defines labels that Kubernetes components should disregard when making pod decisions.
ignored_node_labels	Defines labels that Kubernetes components should disregard when making node decisions.
